NanoWave

High Capacity Waveform Viewer

Simulation Waveform Viewer Data Processing & Calculation Simulation Data Optimization

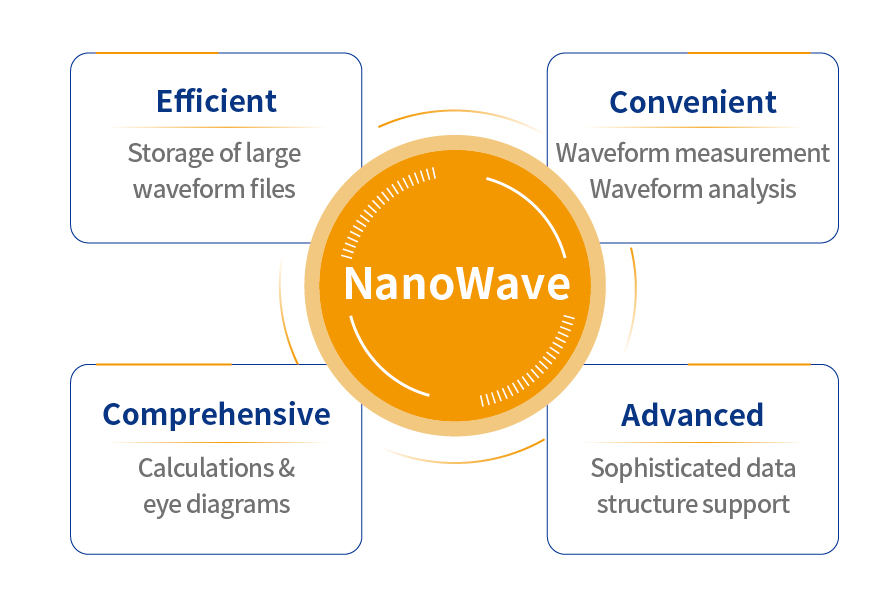

NanoWave is a high-performance and high-capacity waveform viewer developed and optimized for Primarius NanoSpice simulators.

  • Advanced framework using state-of-the-art software development technology

  • Optimized to efficiently load and display high-capacity database

  • An array of features to display, measure, analyze and debug simulation results




Download Brochure

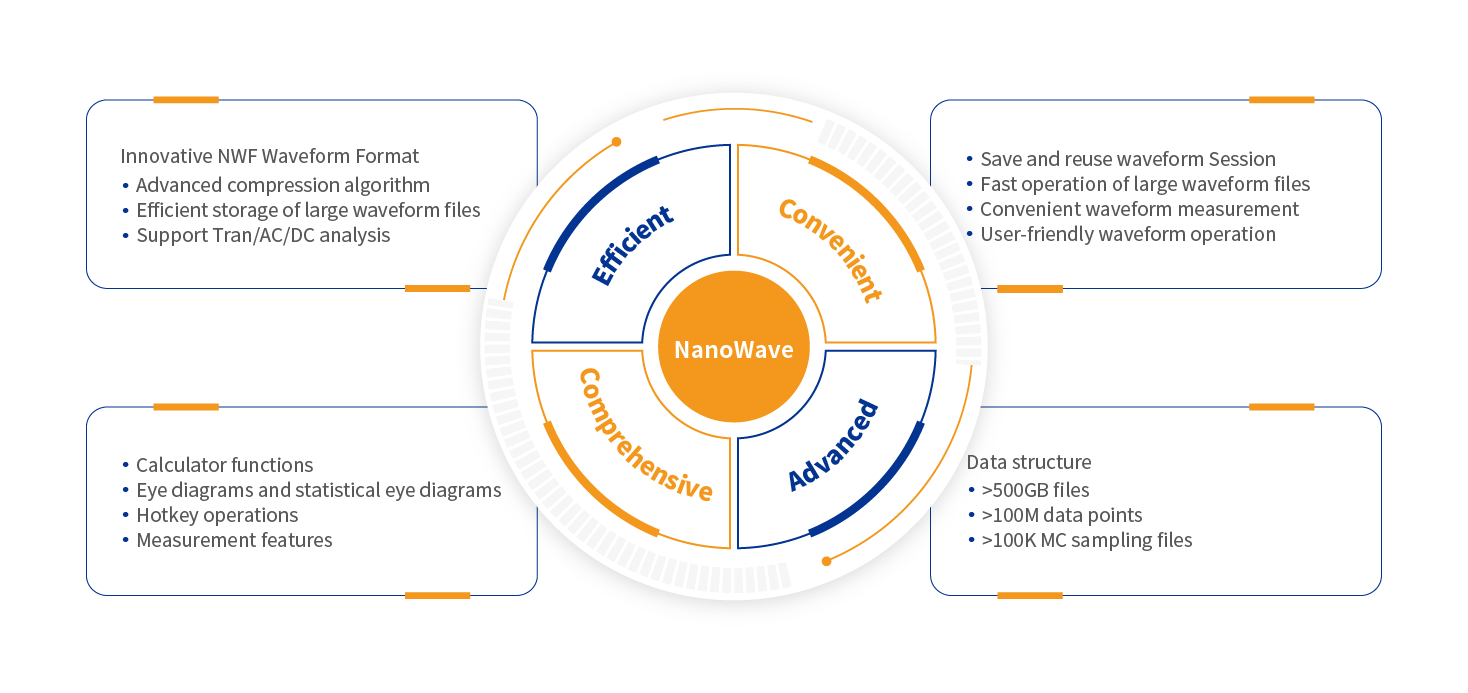

Highlights

  • High Speed

    Loading & browsing
    large-capacity data (100GB+ files) in seconds

  • Large Capacity

    32M+ data points
    100K+ MC

  • Ease of Use

    Rich
    calculator functions

  • Versatilility

    Compatible waveform data
    format & analysis

  • Convenience

    Save and reuse waveform Session
    to load/save waveform files directly

  • Efficiency

    Convenient hotkey operations
    for efficient waveform measurement

Applications

  • Circuit
    performance
    display &
    analysis

  • Circuit
    function
    verification &
    analysis

  • Post-processing
    of circuit
    simulation
    data

  • Analysis and identification
    of circuit behavior problems

Videos

Watch Video
